I saved my JPG at 100% quality and have my category image parameters in K2 set to 100 but it still looks like the image is getting compressed during upload/display. Does anyone else have this problem? Or better, a solution?

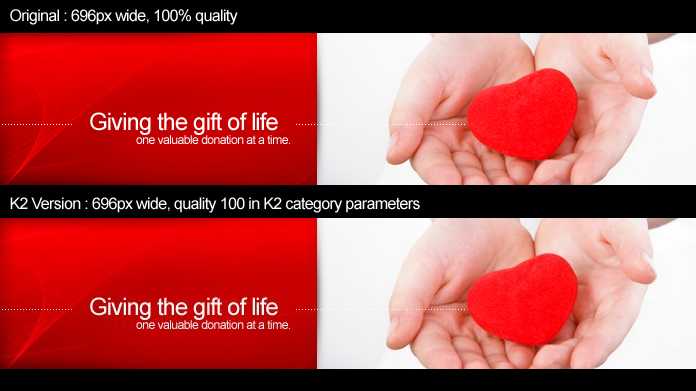

I've attached a sample of the two images.

Thanks!

I have the same problem.

Bump for help. I know others have this problem... has anyone found an answer to keep the category images from being compressed?

Same problem. Even the worst part is that my images start at the right size and it still recompresses to a larger file size that look horrible.

This is a GD problem. Not sure how to fix it :( maybe a sharpen in class.upload.php?

Also for the K2 dev guys to check out >>>

"GD Version 2.0 can also load truecolor JPEGs with as little loss as possible; however, bear in mind that JPEG is a lossy format, so repeated load/save cycles always reduce image quality. This is not a bug."

Maybe that is the problem, the image is being loaded and saved multiple times?

Server issue

I've noticed that article images don't seem very sharp after being resized by K2. It's not JPEG compression artifacts in my case, just a slight blur. Is it possible to tweak GD default settings?

I'd like to know a solution as well.

these images are cached, therfore possibly the caches needs to be flushed, or cache turned off when editing...go to tools/purge expired cache..then purge...may help
cliffclof said:I'd like to know a solution as well.

I'm not too sure this is the right solution. Has something changed in K2 that produces non-blurry item images. If so then a cache clear might do the trick, but I thinks the problem is in the actual creation of the image during upload time.

michael neese said:these images are cached, therfore possibly the caches needs to be flushed, or cache turned off when editing...go to tools/purge expired cache..then purge...may help cliffclof said:I'd like to know a solution as well.

Apparently no one has found a solution. I simply gave up on K2's image section and load images directly into articles with JCE editor. It bypasses all of the cool resizing but the images are clear. I can also put pics anywhere I want in the article. I just use smaller images to fit no matter the column size. And by the way, this really sucks (Translated: opportunity for improvement).

I am having issues with this too, the quality of the images is unacceptable. Please view the attached. Is there anyway we can edit the image processor or swap it out for something else? As for me, inserting the images via JCE is not an option for how I have my site laid out.


It seems to me that upon upload, the system is downsizing the size and then re-sizing up to fit the current settings. Anyone know where we could find the exact point it is doing that?

Thanks for posting the photos Leah. It perfectly illustrates the problem. I'd love to find a solution to this also. Anyone?

Leah Bartlett said:I am having issues with this too, the quality of the images is unacceptable. Please view the attached. Is there anyway we can edit the image processor or swap it out for something else? As for me, inserting the images via JCE is not an option for how I have my site laid out.


It seems to me that upon upload, the system is downsizing the size and then re-sizing up to fit the current settings. Anyone know where we could find the exact point it is doing that?

Wow... nearly a year since I posted this and still no resolution. For the record, I just ended up changing my layout because the low quality images were simply unacceptable. This is quite disappointing to see the lack of support on a seemingly simple fix like this. It was easier for me to change the layout than to dig through the K2 core and try to locate the problem, even though I do have a PHP coding background a probably could have found it (eventually).

Yeah, my php knowledge is minimal... I know enough to get me in trouble. I see v2.4 was released this week, but it appears nothing has been done to solve this issue.

What image processor does Simple Gallery or the Frontpage Slideshow use? Is it the same or is it different, because I use FPSS, and the quality is downgraded a little, but not nearly as bad as the K2 component. I would think the img processor would be the same since they are created by the same group? Just a thought as to maybe the direction we can go in solving this.

I think this should be a priority because the whole function of K2 depends on the look of content. At least add some manual options or something. Very disappointing to not see a fix to this I agree.

Any jpg image that is re-compressed will lose quality...and setting the file quality to 100% does not mean the file is unchanged, it means the file is compressed, but high quality...the jpg's ability to retain sharpness of text is bad in the first generation, and worse for any additional compression... If a file is to be re-sized for a item or category display, start with an image that is 200% to 400% the size that you will end up with and your results will be much better.

^^ What you're saying may be true, but I don't think that's the issue here. The software is clearly ignoring the global parameters. If the size set in the parameters is the same size as the image, the image should not be reprocessed unless the compression/quality settings are lower than 100%. But that clearly isn't the case because I, like others here, are uploading images that are the highest quality JPGs and are the correct/same size as the parameters but they are still being processed by whatever method K2 is utilizing.

That is poor programming. When 100% doesn't mean 100%, there is a issue that needs to be resolved.

Again, 100% is the compression quality...the image will be compressed...the whole system is geared to enable you to reconfigure one master image to various sizes as needed for a variety of uses...to ignore that very useful concept and howl about poor programming is disrespectful and shows ignorance of the workflow development that went into this advanced system. If you know so much about programming, why haven't you devised an alternative php script to modify the k2 to suit your needs for this minor detail that seems to be misunderstood by many of the responders in this thread?
If you take a file in photoshop and "save as" a jpg, 100% is the compression quality of choice for the highest quality of jpg compression available...it does not mean "no compression" for a same size image...
And it is the same for this configuration in K2....

@Michael - you're right... it's too much to ask to have some code that assumes that if ($srcWidth == $parameterWidth) && ($parameterQuality == 100) just save the file as it was uploaded and bypass the K2 compression/resizing algorithm. Some of us don't need K2 to resize our files (like most of us on this thread) but I guess I'm just asking too much here and clearly showing my ignorance but more likely my intolerance of people like yourself that offer opinions with no solutions. While your comments about compression of JPG files out of Photoshop is 100% correct, you're helping no one here fix their problem. I'm hoping that enough activity on this thread will earn a response from the K2 development team so please keep posting.
